Gold Vehicle, Mobility and Transportation Design · 2020
Interliner Bus
- A' Design Award 2020 Gold Winner in Vehicle, Mobility and Transportation Design
- Awarded April 15, 2020
- CLIENT: Anadolu Isuzu Otomotiv Sanayi ve Ticaret A.S.
- Estimated Number of Design Views: 103,313
- Verification code 63876BF359 · Verify this award
About Interliner Bus
Interliner is a 13 metre bus designed for service, school and short distance intercity transport. The bus has 63 seats, and the midsection can be changed into a standing and wheelchair area with folding seats. A wheelchair lift is available on request. The exterior has a sharp black contoured face with split headlights, a dynamic body and an aerodynamic cover for the compressed natural gas tanks. The monocoque chassis is made of steel and aluminium. Interliner is intended as an economic and low emission solution for regular routes.
Positioned within the evolving discourse of sustainable public transportation design, Anadolu Isuzu's Interliner Bus represents a thoughtful synthesis of functional engineering requirements and progressive aesthetic vision that advances the formal language of intercity coach architecture. The design team appears to have engaged meaningfully with the challenge of creating a vehicle that communicates both technological sophistication and approachable human scale, evident in the carefully orchestrated relationship between the expansive glazed surfaces that promise passenger comfort and visual connection to passing landscapes, and the confidently sculptural metallic body that conveys structural integrity and journey reliability. The frontal composition demonstrates particular accomplishment in establishing brand recognition through the distinctive headlight graphic, where elongated amber-accented LED units create a memorable visual signature while simultaneously fulfilling illumination requirements with contemporary efficiency. One observes a sophisticated understanding of surface development in the subtle inflections that animate the side panels, where horizontal character lines create rhythm and visual interest without disrupting the overall sense of unified, flowing form. The chromatic restraint exercised throughout, limiting the palette to harmonious silver-grey metallic tones, suggests confidence in form rather than reliance upon applied color for visual impact, allowing the sculptural qualities and material refinement to speak with clarity. The design further demonstrates sensitivity to the human experience of approaching and boarding such a vehicle, with the generous entry proportions and welcoming transparency of the passenger compartment creating an invitation to journey. Viewers might consider how this work participates in the broader cultural project of reimagining public transportation as dignified, comfortable, and aesthetically rewarding collective experience rather than mere utilitarian necessity.
Press Kit
- Unique Properties
- Interliner is a 13 m, service, school and short distance intercity transportation vehicle. It is Anadolu Isuzus first bus within its segment and one of the very first members with the new design language which is digital, sharp, black contoured face with split design headlights. Dynamic body, aerodynamic Cng cover, new dashboard and Ux design supports this new statement. Interliner offers the best package within its size including the most comfortable driver space and passenger zone.
- Dimensions & Packaging
- Width: 2550 mm, Length: 12990 mm, Height: 3634 mm, Wheelbase: 6950 mm, Front overhang: 2660 mm, Rear overhang: 3380, Gross Vehicle Mass: 19.500 kg. Interliner is equipped with Zf Ecolife 6 A P 1400 6 speed automotic transmission and 6 cylinders Cummins engine which produces 320 hp at 2000 rpm. Capacity: 63 seats, optional 4 folding seats alteration. Luggage capacity: 6.9 m3 with lift, 7.5 m3 without lift. Wheelchair lift is available on demand.
- Tags
- bus, public, transportation, anadolu isuzu, vehicle, automotive, design, interliner, interurban, school bus
- Production Technology
- Monocoque chassis and other structural elements are steel and aluminium. The outer shell which covers this structure around are mainly sheet metal, perforated sheet metal, fiber reinforced polymer and tempered glass according to its location, form and function. Inner surfaces include Abs, Pu, Pvc, formica, aluminium, vinyl, fabric and various composites.
- Design Challenge
- While combining all the components with the maximum seat capacity in 13 meters limited length, ensuring that the driver and passengers are given the maximum, comfortable and ergonomic space was one of the biggest challenges in the project. Strengthening the perception of Compressed Natural Gas tubes as part of the main bus body instead of separate, add-on components was also important for vehicle to state with its form that it is a safe and green solution rather than dangerous or bulky.
- Project Duration
- The project started in November 2018 and going to be finished in June 2020 in Kocaeli, Turkey.
- Operation Flow

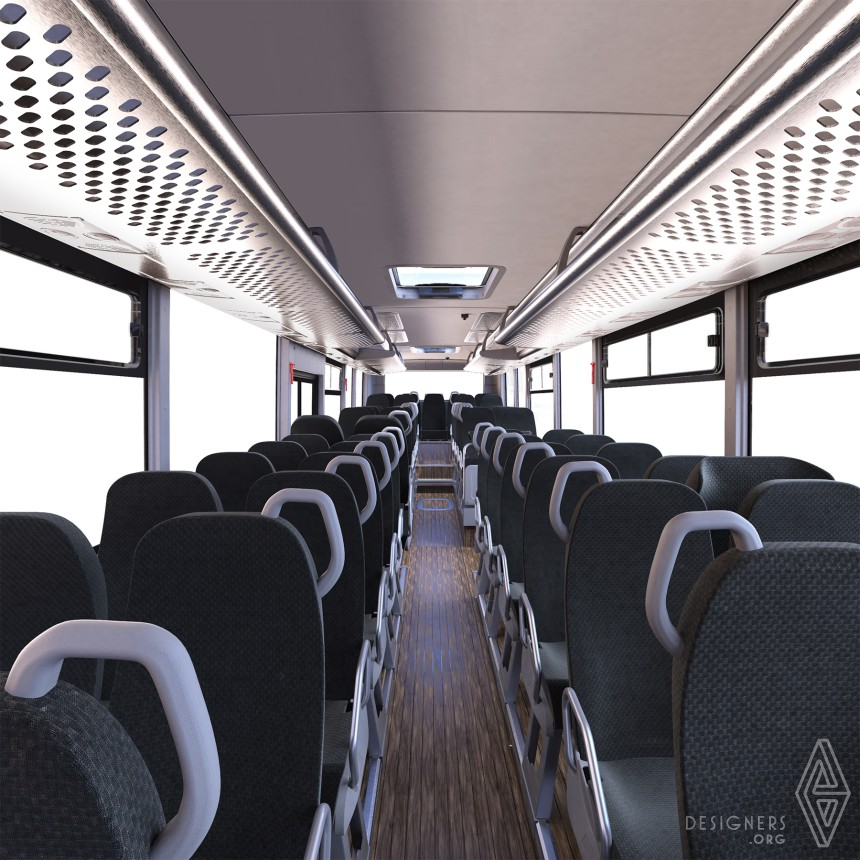

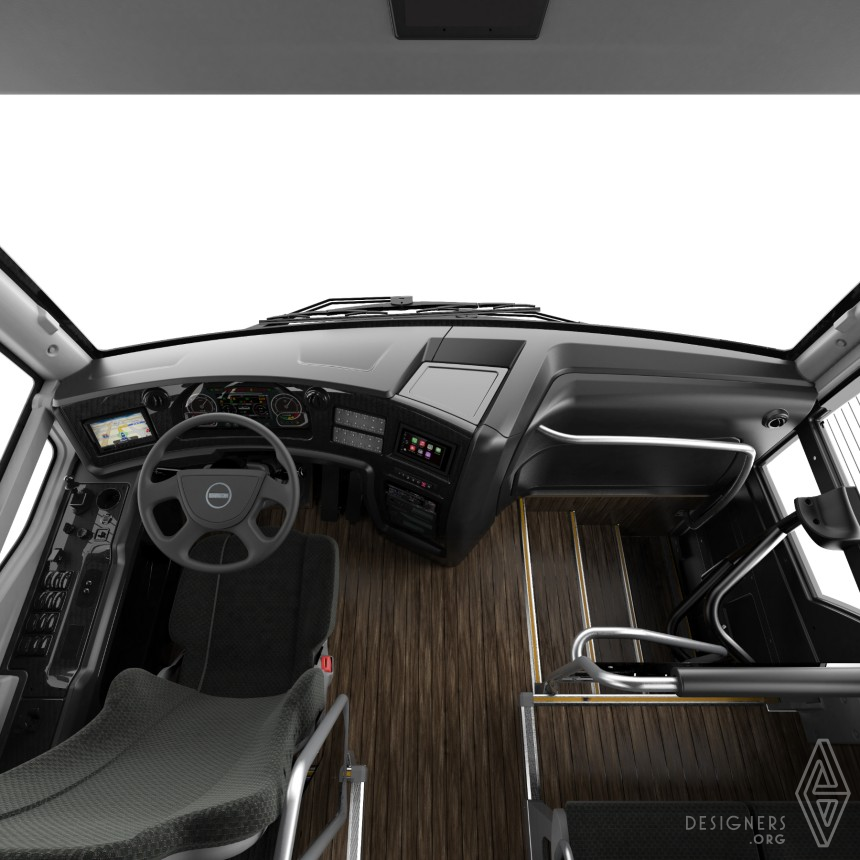

- Interliner is designed to be operated as school, service and line type interurban transportation vehicle. Having the widest driver stroke amongst its competitors at the same size and capacity with the ideal settlement, it offers different steering wheel and seating position options in order to adapt drivers comfort and ergonomy. While standard Interliner has the maximum seating capacity, there is the option for midsection to be transformed into standing and wheelchair area with folding seat usage.
- Research
- After market and project definition, benchmark and field researches are conducted. Anadolu Isuzus existing products and their know-how are reassessed, and used as a development point in order to increase ergonomy, serviceability, durability and productivity in the manufacturing process. Advancements in other industries, upcoming trends and form tendencies are analyzed along with color, material and finish researches.
- Inspiration
- In the coming years diesel bus & coaches will not be permitted in certain parts of the European cities. Interliner 13 CNG is designed to be an economic and green solution for regular service and schoolbus transportation in such areas. Purchase, operation and maintenance costs are highly important for the owner and operator. Making the bus cost effective, functional and durable while ensuring that the driver and passenger needs are met, were the main requirements and source of inspiration.
- Image Credits
- Anadolu Isuzu Design Team, 2020.
- Patents
- Design Registration. 2019/01228. Kunter Aytekin. 2019.
Design Registration. 2019/01218. Kunter Aytekin. 2019.
Design Registration. 2019/01219. Kunter Aytekin. 2019.
Design Registration. 2019/01247. Kunter Aytekin. 2019.
Design Registration. 2019/01249. Kunter Aytekin. 2019.
Design Registration. 2019/01252. Kunter Aytekin, Ozge Fati. 2019.
Design Registration. 2019/01268. Görkem Erdogan, Sadik Gelirli. 2019.
Design Registration. 2019/01269. Kunter Aytekin, Sadik Gelirli. 2019.
Design Registration. 2019/01270. Sadik Gelirli, Ozge Fati. 2019.
Design Registration. 2019/06515. Ozge Fati. 2019.
Utility Model. 2019/20555. Mustafa Akinci. 2019.
Pending Patent Application. 2019/20549. Tarik Aydin. 2019.
Pending Patent Application. 2019/19064. Semih Selcuk. 2019.
Pending Patent Application. 2019/22679. Semih Selcuk. 2019.
Pending Patent Application. 2019/19482. Mustafa Akinci. 2019.
Pending Patent Application. 2019/21240. Tuncay Caliskan. 2019.
Pending Patent Application. 2019/20325. Erkan Kutlu, Goktan Ozmenekse, Yusuf Dil, Tuncay Caliskan. 2019.
Pending Patent Application. 2019/21238. Tarik Aydin. 2019.
Pending Patent Application. 2019/20315. Tarik Aydin. 2019.
Pending Patent Application. 2019/21613. Semih Selcuk. 2019.
