Robot Manipulator Remote Operation Device by Wang Zhuo and Lu Na is a highly esteemed winner of the very prestigious 2021 Silver A' Design Award in Robotics, Automaton and Automation Design Competition Category.
SilverRobotics· 2021
Robot Manipulator Remote Operation Device
Client: Shenyang Aerospace University
Silver A' Design Award Winner in Robotics Category
Verified Award Winner
Verify Award Status for #121833The Design
About Robot Manipulator Remote Operation Device
Robot Manipulator is a handheld control device for operating a medical robotic arm. The body is made of carbon fiber and aluminum, a combination that increases strength and reduces weight. The device is held and moved by the hand, and many sensors inside convert hand movements into signals. The signals are sent to a processor, which controls the robotic arm along multiple dimensions and coordinates. The robotic arm returns feedback that matches the hand movement. Precise tasks can be carried out at a distance, including work in dangerous conditions.
The Recognition
About the Silver A' Design Award
Robot Manipulator Remote Operation Device is a Silver A' Design Award winner, an extraordinarily prestigious recognition granted to top-of-the-line, gorgeous, and impressive designs. Silver winners are tremendously brilliant and exceedingly creative works that illustrate the outstanding expertise, talent, and acuity of their designers. Robot Manipulator Remote Operation Device is expected to be a wonderful, showpiece work that is remarkably professional and profoundly innovative. This Silver A' Design Award-winning design is a highly notable, admired invention that benefits and advances the boundaries of art, science, design, and technology. Robot Manipulator Remote Operation Device is a vastly envied creation that evokes desires, introduces positive feelings, and sparks amazement and wonderment.
Where to Get It
Advanced Robotics and Industrial Design Services
We bring 20 years of expertise in equipment product design, intelligent systems, and automation to transform your complex engineering challenges into award-winning solutions. Our university-backed innovation center specializes in medical robotics, precision control systems, and human-machine interfaces.
Contact UsBehind the Design
Press Kit
Credits, team members and technical details provided by the designer.
- Unique Properties

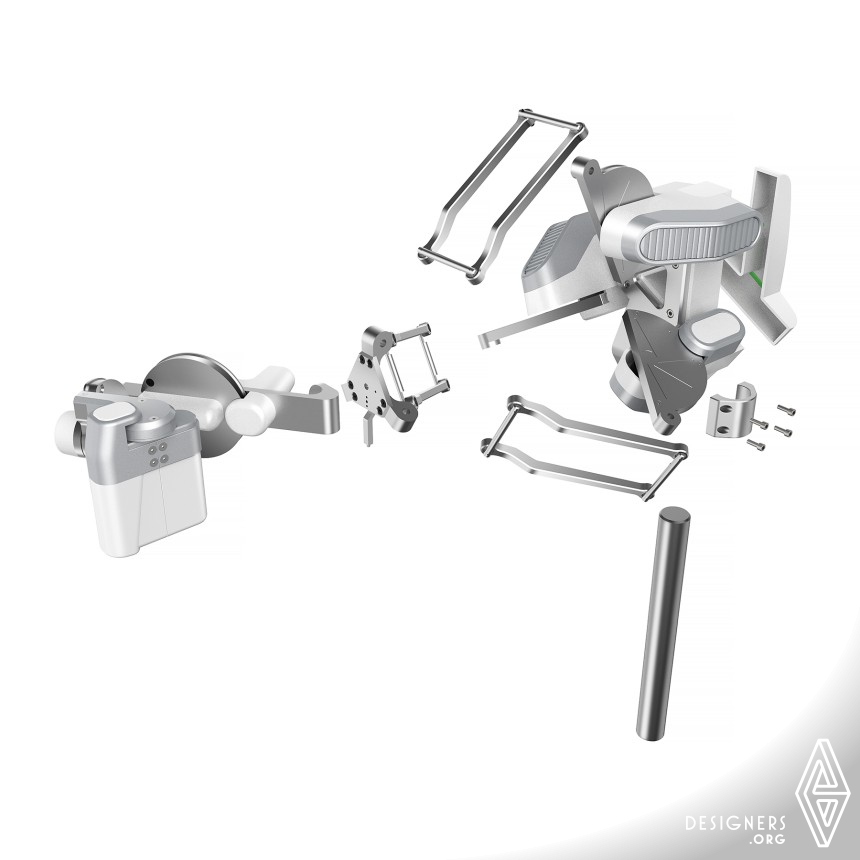

- This product is a manipulator used to operate a Medical application robot. The overall shape is extremely sci-fi. The main body of the product is composed of carbon fiber and aluminum. Through the handheld gripping method, it simulates the real operation of human hands, and feeds back the human movement to the processor through a large number of sensors, and further performs multi-dimensionality on the robotic arm. Multi-coordinate, precise control.
- Dimensions & Packaging
- 700 mm x 350 mm x 350 mm
- Tags
- Industrial, Robot, Manipulator, Ergonomics, manipulation, multi-dimensional
- Production Technology
- Automatic control, program editing, industrial design
- Design Challenge
- Material selection, structure design, processing technology
- Research
- How to transform abstract motions into concrete images and symbols can allow users to give corresponding feedback and reduce learning costs. These are the difficulties. The processing of multiple materials is also a difficulty in design.
- Inspiration
- Robots are at the forefront of medical application and give people a strong sense of the future. Therefore, the combination of carbon fiber and aluminum in the processing of the shape not only increases the strength, reduces the weight, but also enriches the visual experience. The color is mysterious and deep. Color, with green and sci-fi lighting, creating a strong sense of technology.
- Project Duration
- 2019.9-2020.4 Shenyang, China
- Operation Flow
- This product is a manipulator used to operate a Medical application robotic arm. The device is manipulated by human hands. The sensor in the device converts the movement of the hand into a signal, which is then transmitted to the robotic arm. The robotic arm can give corresponding feedback according to the hand movement. Completion of off-site operations, remote operations, and dangerous operations.
- Team Members
- Wang Zhuo
Lu Na
Lin Yutong
Liu Yutong
Cui Xinyue
