Jackery Solar Generator System Photovoltaic Energy Storage Module
by Wei Bai, Zhifeng Tang, Xiaowei Yin and Tao Yang
Client: Wei Bai; Zhifeng Tang
Golden A' Design Award Winner in Energy Category
Verified Award Winner
Verify Award Status for #122091The Design
About Jackery Solar Generator System Photovoltaic Energy Storage Module
Jackery Solar Generator System is a portable solar power supply designed for outdoor use. The system consists of a foldable photovoltaic panel and an energy storage module. The photoelectric conversion rate reaches 24 percent, and the generator provides 1800 W of power and 1500 Wh of capacity. Several solar panels can be connected in parallel to raise power generation efficiency. The panels are rated IP67 and use ETFE packaging material. The energy storage module has a 94V-0 fireproof shell and a built-in vehicle-grade battery that resists drops, wind and sand.
The Recognition
About the Golden A' Design Award
Jackery Solar Generator System Photovoltaic Energy Storage Module is a Golden A' Design Award winner, an immensely prestigious recognition granted to first-rate, marvelous, and outstanding designs. Golden winners are exceedingly innovative, visionary, and glamorously dazzling creations that reflect the prodigy, wisdom, and prowess of their designers. Jackery Solar Generator System Photovoltaic Energy Storage Module is expected to be a highly praised, trendsetting, and monumental invention that delivers unprecedented value. This Golden A' Design Award-winning design is a spectacular, respected project that highly benefits and advances the boundaries of art, science, design, and technology. Jackery Solar Generator System Photovoltaic Energy Storage Module creates intense feelings of desire, evokes passion, encourages creativity, and fascinates us.
Where to Get It
Portable Solar Power Stations and Generators
We pioneer green energy solutions with our award-winning portable power stations. Our solar generators combine high-efficiency photovoltaic panels with reliable energy storage, delivering clean, quiet power anywhere. From outdoor adventures to emergency backup, we make sustainable energy accessible for everyone.
Shop NowBehind the Design
Press Kit
Credits, team members and technical details provided by the designer.
- Unique Properties

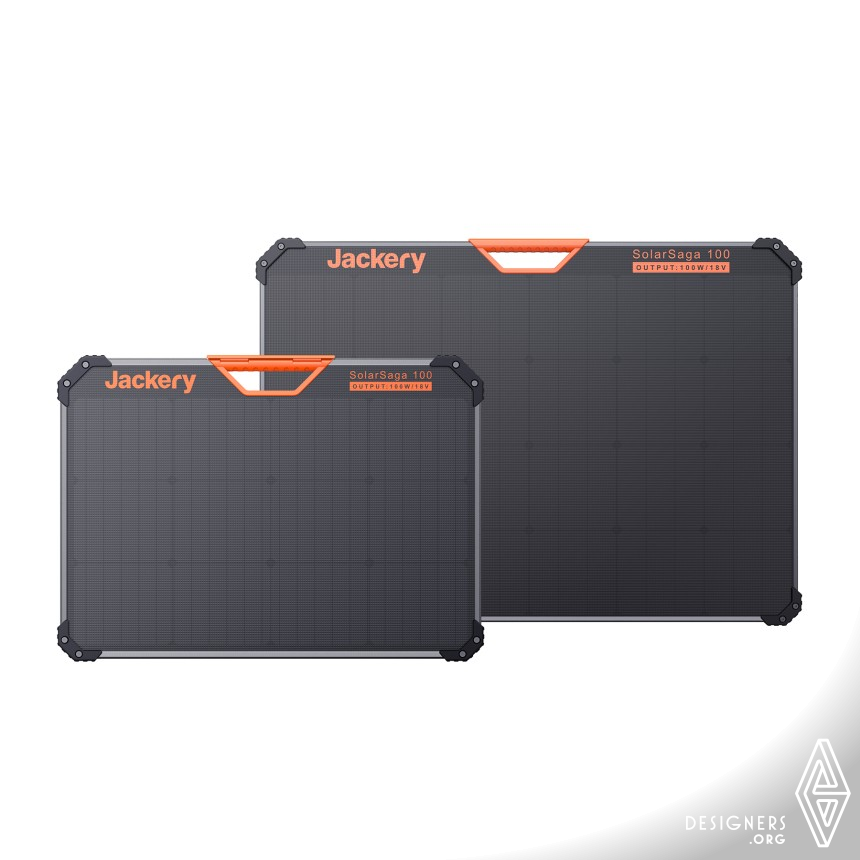

- The Jackery solar generator system consists of a foldable photovoltaic panel and an energy storage module. Its photoelectric conversion rate is as high as 24%, and the solar generator has 1800W power and 1500wh capacity.The solar panels can be connected in parallel to improve power generation efficiency, and it is IP67 waterproof.
- Dimensions & Packaging
- Length 356mm, width 254mm, height 323mm
- Tags
- Solar power generation, green energy, recycling, zero pollution, outdoor power supply, easy-to-store, portable, parallel power generation, foldable
- Production Technology
- The energy storage module uses a 94V-0 fireproof shell. The machine with built-in electric vehicle-grade power battery has passed the UN38.3 shockproof test, which is drop-proof, drop-proof and is resistant to wind and sand, ensuring a stable current output. The Solar panels uses the ETFE packaging material.
- Design Challenge
- Main challenges1, heat dissipation, wind noise, temperature control of inverter 2, Drop reliability.
1, We use the intelligent temperature control system to automatically adjust the fan speed, and we optimize the layout of the heat sink aluminum sheet, air ducts and other structures to form a cycle, reducing noise and improving heat conduction efficiency.
2, Through the aluminum edges and silicone corner on the outside of the solar panel, the energy storage module’s self-tapping screws are changed to in-mold injection copper nuts, and the machine is assembled and fastened with screws to solve the problem of drop reliability. - Research
- Research Goal: Making full use of green energy to alleviate global energy pressure and environmental pressure
Research Direction: Adopting an integrated cell forming technology to realize a family design of the product.
Market Research: Data from online research and professional research company.
Impact: The lifestyle of people using outdoor electricity has been changed, and using green energy has alleviated environmental pressure. - Inspiration
- As the core green energy, the solar energy generates power directly, which is more convenient and efficient than other green energy such as wind energy. The product has passed 6 categories of test items, 9 quality test procedures, and complies with UL safety testing standards, coupled with the self-developed BMS battery management system and automatic testing equipment to ensure user safety.
- Project Duration
- The project started in 2020 in Shenzhen and will finish in March 2021 in Shenzhen.
- Operation Flow
- The solar generator is compatible with 99% of common electrical appliances, which is suitable for various scenes such as outing, outdoor work, etc. It is equipped with a high-definition LCD screen. Sinusoidal current output is able to protect electrical appliances effectively.
It adopts six safety protections and intelligent temperature control to dissipate heat, coupled with the independent switch of output and rubber dust plug, which is safer and more convenient to use. - Team Members
- David Bai; Zhifeng Tang; Xiaowei Yin;Tao Yang-Shenzhen Hello Tech Energy Co.,Ltd
