Compact Pro Air Purifier by Sxdesign is a highly esteemed winner of the very prestigious 2022 Silver A' Design Award in Heating, Ventilation, and Air Conditioning Products Design Competition Category.
SilverHVAC· 2022
Compact Pro Air Purifier
by Sxdesign
Client: Healthlead
Silver A' Design Award Winner in HVAC Category
Verified Award Winner
Verify Award Status for #137580The Design
About Compact Pro Air Purifier

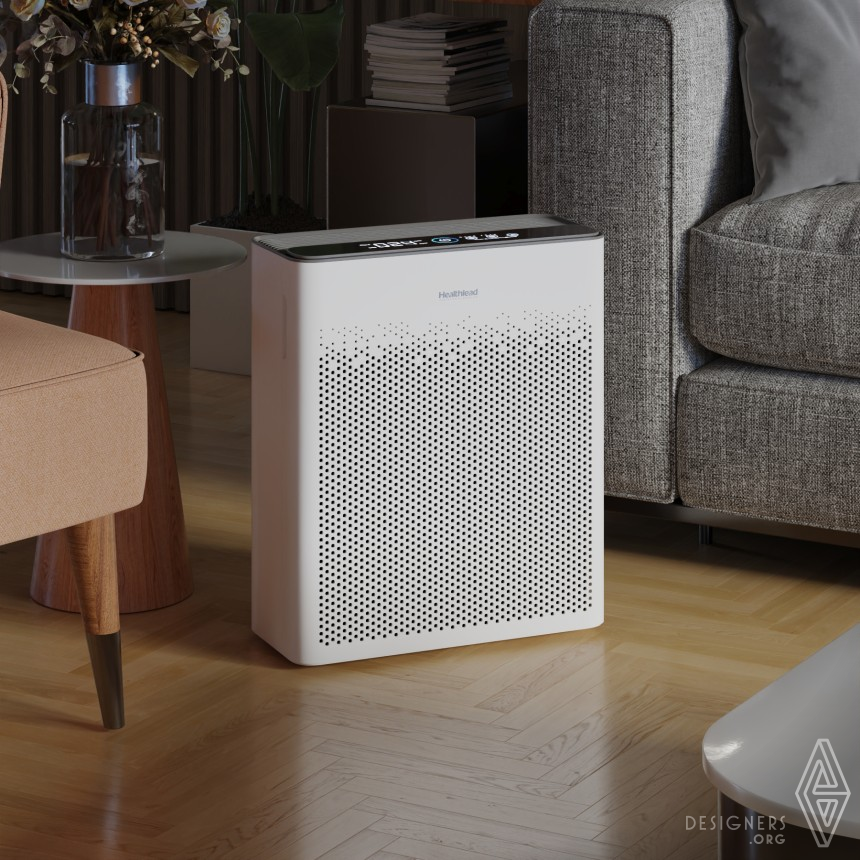

Compact Pro is an air purifier developed for homes in regions affected by air pollution and low income. The shape of the fan runner was resculpted through systematic optimization, and a square proportion was selected. The change improves performance by 50 percent, uses space better and allows a more compact arrangement of the electronics. A floating table-shaped interaction area with a breathing light forms the visual center. The body is made of ABS by injection molding, with a transparent black acrylic panel. The minimalist, neutral style conveys an inclusive ethos.
The Recognition
About the Silver A' Design Award
Compact Pro Air Purifier is a Silver A' Design Award winner, an extraordinarily prestigious recognition granted to top-of-the-line, gorgeous, and impressive designs. Silver winners are tremendously brilliant and exceedingly creative works that illustrate the outstanding expertise, talent, and acuity of their designers. Compact Pro Air Purifier is expected to be a wonderful, showpiece work that is remarkably professional and profoundly innovative. This Silver A' Design Award-winning design is a highly notable, admired invention that benefits and advances the boundaries of art, science, design, and technology. Compact Pro Air Purifier is a vastly envied creation that evokes desires, introduces positive feelings, and sparks amazement and wonderment.
Where to Get It
Strategic Product Design and Innovation Services
We transform ideas into award-winning products through systematic design optimization. Our Beijing-based studio combines aesthetic excellence with performance engineering, delivering innovative solutions that balance functionality, cost, and user experience. Partner with us for your next product innovation.
Request QuoteBehind the Design
Press Kit
Credits, team members and technical details provided by the designer.
- Unique Properties
- After systematic optimization, we resculpted the shape of the fan runner in Compact Pro and determined that a square proportion would be better. This improves the performance by 50% while making better use of space and arranges the electronics more compactly. In design, the floating table-shaped interaction area with breathing light creates the visual center. The various parts are integrated by a high-order surfaces transition surrounded. The minimalist, neutral style conveys an inclusive ethos.
- Dimensions & Packaging
- CADR:270m3/h.
White body with grey top.
Dimensions: 365mm×420mm×160mm. - Tags
- air purifier, systematic, compact, cost, performance
- Production Technology
- White body with grey top. ABS injection molding.
Transparent black acrylic interactive panel. - Design Challenge
- Design team had to maximize the performance and design possibilities within the constraints as cost, aesthetics, etc. This process involves large amounts of combinatorial experimentation. To achieve a better balance also requires us to make various trade-offs. At the same time, to deliver a product like this requires design team to consider the problem from a variety of perspectives such as market, user, function, structure, aesthetics, craftsmanship and so on, which is also a huge challenge.
- Research
- After research, We found that some characteristics of the fan such as the spiral opening, worm tongue size, etc. have a strong correlation with performance. But size, proportion, cost, design, etc. will also be affected. Therefore how to determine a balance among these changes is a systemic problem. And to solve this problem requires us to use a systematic approach to organically sort, combine, organize, and analyze all the influencing factors.
- Inspiration
- People in developing regions are facing issues of low income and air pollution. So designers wanted to create a low cost product with high performance for them. By using computational fluid dynamics, We try to use a systematic method to analyze and optimize the shape of the fan runner, the internal structure, and the overall proportion of the product. Finally, under the condition of controlling the cost, the performance of the product has been significantly improved from the previous generation.
- Project Duration
- The project started in January 2021 in Beijing and finished in June 2021 in ShenZhen, China.
- Operation Flow
- After power on, click on the center of the panel to start working. The purifier has three air speeds and four time settings. The red, yellow and green colors of the breathing light are displayed in conjunction with the digital display to show the current air quality. Compact Pro also supports locking and filter replacement instructions. The internal filter can be replaced by removing the front case by holding the grip position.
- Patents
- Sxdesign
- Team Members
- Hao Huang
Yingfei Sun
Qian Hao
Haining Jiang
Xu Chen
Rong Zhang
Zhixue Zou
Yaogang Chen - Image Credits
- Sxdesign
