IC100 Mobile 3D X-ray Fluoroscope Medical Device by Peipei Zhang and Ze Chen and Xuan Teng is a highly esteemed winner of the very prestigious 2022 Silver A' Design Award in Medical Devices and Medical Equipment Design Competition Category.
SilverMedical Product· 2022
IC100 Mobile 3D X-ray Fluoroscope Medical Device
by Peipei Zhang and Ze Chen and Xuan Teng
Client: Nanjing Truedoc Medical Technology Co., Ltd.
Silver A' Design Award Winner in Medical Product Category
Verified Award Winner
Verify Award Status for #140668The Design
About IC100 Mobile 3D X-ray Fluoroscope Medical Device

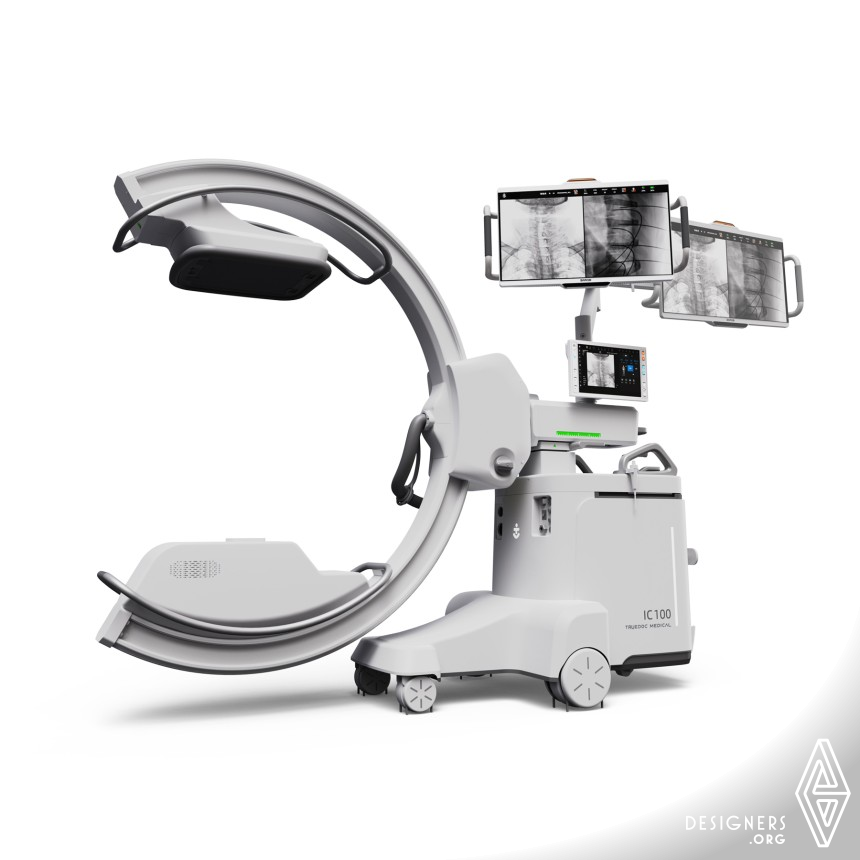

IC100 is a mobile 3D X-ray fluoroscope designed for use during surgery. The device captures video, still images and three-dimensional images. The C-arm and the workstation are merged into one cart, saving operating room space and making the unit easier to move. A wide C-ring opening suits many surgical scenarios. Smart-Link technology connects the system with surgical robots and shortens the preparation workflow. A CMOS detector supports high image quality at low doses. A separate image console allows remote exposure, reducing radiation exposure for medical staff.
The Recognition
About the Silver A' Design Award
IC100 Mobile 3D X-ray Fluoroscope Medical Device is a Silver A' Design Award winner, an extraordinarily prestigious recognition granted to top-of-the-line, gorgeous, and impressive designs. Silver winners are tremendously brilliant and exceedingly creative works that illustrate the outstanding expertise, talent, and acuity of their designers. IC100 Mobile 3D X-ray Fluoroscope Medical Device is expected to be a wonderful, showpiece work that is remarkably professional and profoundly innovative. This Silver A' Design Award-winning design is a highly notable, admired invention that benefits and advances the boundaries of art, science, design, and technology. IC100 Mobile 3D X-ray Fluoroscope Medical Device is a vastly envied creation that evokes desires, introduces positive feelings, and sparks amazement and wonderment.
Where to Get It
Medical Device Design and Innovation Services
We specialize in transforming complex medical technology challenges into innovative, user-centered solutions. Our award-winning team combines deep technical expertise with human-centered design thinking to create medical devices that enhance surgical efficiency, improve patient outcomes, and empower healthcare professionals.
Request QuoteBehind the Design
Press Kit
Credits, team members and technical details provided by the designer.
- Unique Properties
- The portable X-ray device captures video,still images,3D imaging while surgery:
Smarter:SMART-LINK opens up interactions with surgical robot,73% workflow deduction compared to existing flow.
More agile:1st ever highly integrated,all-in-one 3D C-Arm saves OR space,easier to move.
More convenient:Oversized opening fit more surgical scenarios.
Clearer:Next-gen CMOS detector allows high image quality at low doses.
Safer:Stand-alone image console allows remote exposure,greatly reduce radiation damage - Dimensions & Packaging
- Width 2218mm x Depth 834mm x Height 1958mm
70% of the materials of IC100 can be recycled, including plastic shell & metal structural parts.
IC100 applied up to 25% recycled materials.Recycled and reprocessed cartons and metal fasteners are used for transportation and fixation.
Self-developed coating, self-healing coating+antibacterial,reducing the use of disposable sterile plastic bags and excessive disinfection during operation, reducing the probability of medical waste. - Tags
- C-Arm, X-ray, robot, IC-100, IC100, 3D X-ray, fluoroscope, fluoroscopy, mobile X-ray, NS100, robotic assisted surgery, robotic surgery, surgical robot, imaging, surgical imaging, Radiography
- Production Technology
- Patented coating:self-healing,anti-virus lasting.
Depth camera:Auto-sense patient and robot position,auto-adjust and avoid collision.
Efficient,simple,precise Smark-link:optimized workflow,open DICOM and controls to robot.
Auto oil injection line-stable&clearer image.
Exclusive ALL-in-one:merge C-arm and workstation into a cart,small size+efficient.
Split X-ray generator:small+great radiating.

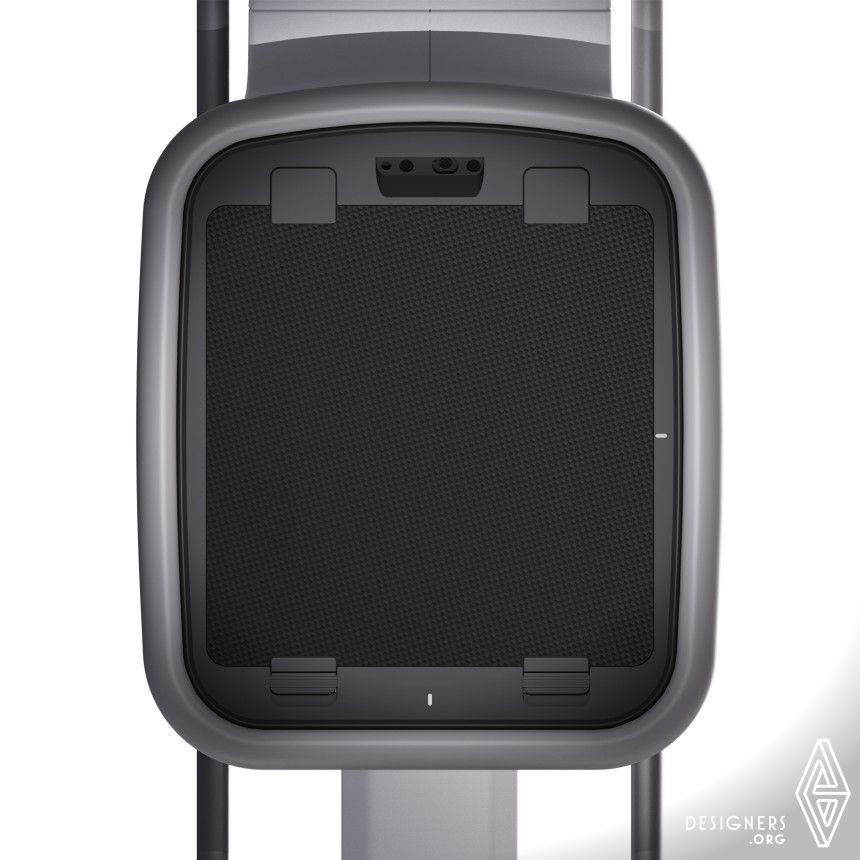

Next-gen COMS detector:high-res,fast+large view field.
Flexible screen:large view field.
Superb 3D algorithm:clearer image - Design Challenge
- Advanced product parameters+first-class performance:Next-gen Flat Detector,30cmX30cm large view field,4K imaging.
Hyper-converged tech with surgical robot,unique precision imaging strategy,digital-twin reconstruction tech and handheld imaging workflow,doubles efficiency.
Leading power control:15kw,far ahead of competitors, allows better resolution+continuous exposure time.
Extreme lightweight C-ring allows 40% deduction in scan time,&close to operating table.
All-in-one,slim fit easy to transport - Research
- Hundreds of stakeholders were surveyed.Applied in-depth function analysis of competitors,patent layout analysis and protection.
C-Arm is a mature market,3D C-Arm sales are very limited.Demand of robotic surgery brought a huge market to 3D C-Arm.Existing C-Arm designed for manual surgery,has huge drawbacks to work with robot:
Complex procedures,inefficient,patient anesthesia risk,collision risk,high radiation,big size,low intelligence,poor images+surgical adaptability+visual field,low 3D accuracy - Inspiration
- C-Arm is a must have for the popular Orthopedic robots, while existing-C-Arm doesn’t fit to robots.
Workflow:
Except 13-step surgical process,robot+existing C-Arm ask an extra 15-step and a technician to finish preoperative preparation, and additional 10-20min surgical time,reduced surgical efficiency and added patients’ anesthesia risk.
Large size of existing dual-trolley C-Arm affect surgeons’ work space, surgical result,even surgical safety. Operation room:limited space,densely equipped and staffed. - Project Duration
- The project started in March 2021 in Nanjing China and finished in January 2022. The product have entered into mass production and is used in hospitals.
- Operation Flow
- Pre-op preparation:
Robot(RT) with existing C-Arm
S1:Deploy(D) Robotic-arm(R-A)
2:Drape the robot
3:Robot cart Positioning(P)
4:R-A P
5:Install Registration Plate(RP)
6:Adjust(A) R-A position
7:D Electric support
8:D C-Arm
9:AP and lateral position to confirm RP and lesion location
10:A C-Arm and RP
11:C-Arm Re-exposure
12:3D exposure
13:3D reconstruction
14:Image transmission(T)
15:Image registration(R)
RT with IC100
S1:Smart P-pose memory+depth camera guidance
2:Scan&R
3:Auto-T
4:A Robot posture+D electric support - Team Members
- Design Manager: Xuan Teng
Designer: Peipei Zhang
Designer:Ze Chen - Image Credits
- Creator(Designer / Peipei Zhang), Creator(Designer / Ze Chen)
