Silver Furniture Accessories, Hardware and Materials Design · 2025
Mag Coupling Drive Builtin Louver Glass
by Anhui Jinpeng Energy Saving
- A' Design Award 2025 Silver Winner in Furniture Accessories, Hardware and Materials Design
- Awarded April 15, 2025
- CLIENT: Anhui Jinpeng energy saving technology Co., LTD
- Estimated Number of Design Views: 36,176
- Verification code DEF3DDD99E · Verify this award
About Mag Coupling Drive Builtin Louver Glass

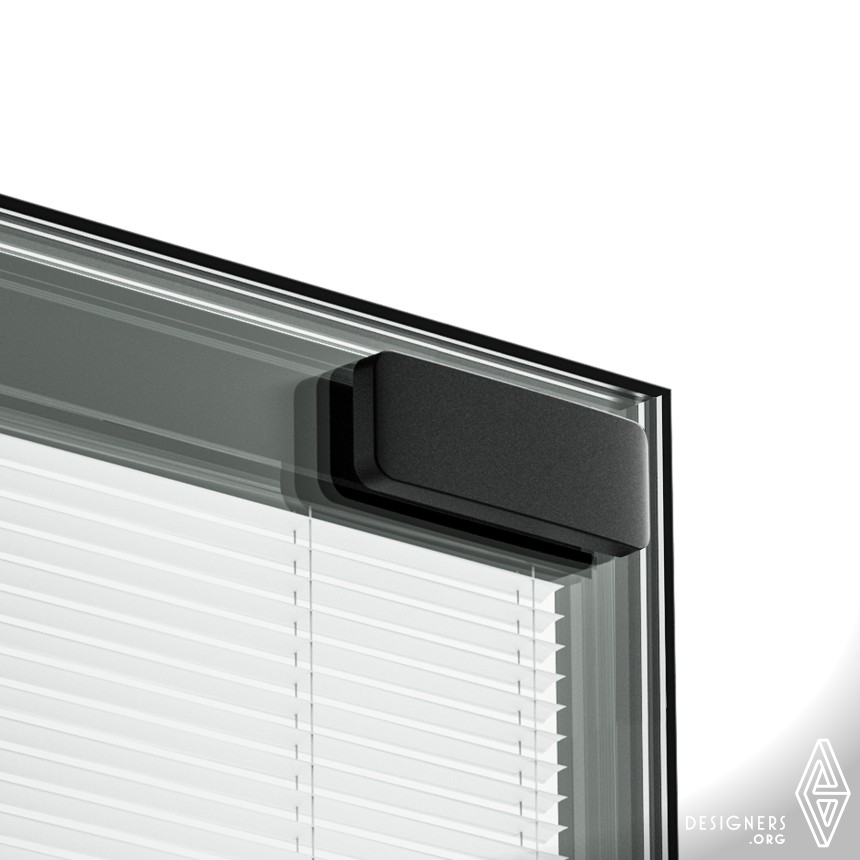

Mag Coupling Drive is an insulating glass window with a built-in louver. The motor is placed outside the glass, which avoids damage from the high temperatures inside the unit and extends the service life. A contactless permanent magnet transmission system and solar powered wireless charging move the louver without exposed wiring, so sealing and water tightness are preserved. The louver can be adjusted by remote control, by voice command or through a mobile application. The window can also be linked to a smart home system.
Ah Jinpeng Energy Saving Techn Co., Ltd's Mag Coupling Drive Builtin Louver Glass represents a significant advancement within the contemporary discourse surrounding intelligent building envelopes and adaptive facade technologies, embodying the convergence of thermal performance engineering with refined aesthetic sensibility that characterizes the most accomplished architectural hardware of the present era. The innovation resides in the magnetic coupling drive system, which enables precise angular adjustment of aluminum louver blades hermetically sealed within the insulating glass cavity through contactless electromagnetic transmission, thereby eliminating the mechanical penetrations that historically compromised the thermal and acoustic integrity of integrated blind systems. Compositionally, the presentation demonstrates sophisticated product visualization conventions, positioning two units at complementary angles to simultaneously communicate frontal appearance, depth proportion, and mechanism detail, an approach that respects viewer intelligence while facilitating comprehensive understanding. The chromatic restraint evidenced in the charcoal frame selection paired with white louvers suggests alignment with contemporary architectural preferences for material honesty and neutral palettes that defer to broader spatial design intentions. Technical accomplishment manifests in the blade parallelism, the optical clarity of glazing surfaces, and the compact elegance of the drive mechanism housing, elements that collectively communicate manufacturing precision and quality assurance. Thematically, the work engages enduring architectural concerns regarding the mediation between interior comfort and exterior environment, the desire for prospect and refuge, and the contemporary imperative toward energy conservation, positioning light control not merely as functional necessity but as experiential enhancement. One might contemplate how such technologies reshape the phenomenological experience of dwelling, transforming windows from static apertures into responsive membranes that participate actively in the choreography of daily illumination.
Press Kit
- Unique Properties
- The innovative glass window with a builtin louver excels in protection, durability, and intelligence. It features a permanent magnet transmission system, which allows for easy control of the louver without intricate wiring. By integrating an external motor and solar powered charging technology, the window eliminates the drawbacks of exposed wiring. For added convenience, multiple louver control methods are available to meet the diverse needs of users.
- Dimensions & Packaging
- Custom products, no fixed size
- Tags
- Window with a builtin louver, External motor, Contactless transmission structure, Solar powered charging, Multiple control options
- Production Technology
- The magnetic field strength, planetary gear count, and configuration are precisely engineered to optimize the transmission ratio, meeting diverse demands for torque and force transfer while ensuring smooth, reliable operation of large louvers.
The louver is fully enclosed for multiple advantages, such as excellent thermal insulation, waterproofing, and dustproofing. The use of stable, durable aluminum magnesium alloy slats further enhances its performance, contributing to a longer service life. - Design Challenge
- To address the key challenge of minimizing environmental impact, the external motor is integrated with solar powered wireless charging technology, ensuring it operates without additional energy consumption or carbon emissions. Moreover, the builtin louver allows users to flexibly adjust the sunlight streaming in, reflecting around 60 percent of solar heat outward. This excellent insulation performance reduces the load on air conditioning, aligning with modern environmental protection goals.
- Project Duration
- The design and development of this window began in Chuzhou in November 2023, and it is set to hit the Chinese market in December 2024.
- Operation Flow
- The external motor supports multiple control methods, including remote control, voice commands, and an app, working in harmony with the contactless permanent magnet transmission system to provide flexible and smooth control of the louver. Additionally, the window can be seamlessly integrated into a smart home system, interacting with other smart devices for users to set up automated scenes as needed.
- Research
- Traditional windows with builtin louvers often place the motor within the insulating glass, which can shorten its lifespan due to high temperatures in summer. Another issue arises when wiring penetrates the sealant, compromising wind resistance, airtightness, and water tightness. In response, this design moves the motor outside the glass and combines a contactless transmission system and solar powered wireless charging, eliminating exposed wiring. Gone are the drawbacks of conventional designs.
- Inspiration
- With a focus on living comfort, this insulating glass window with a builtin louver boasts multiple optimized features: a contactless permanent magnet transmission system, an external motor, and solar powered wireless charging technology. These features eliminate exposed wiring and bring various practical benefits, such as excellent sealing, thermal insulation rated at level 7, water tightness up to 700 Pa, and noise reduction down to 35 dB, ensuring a consistently comfortable indoor environment.
Colors of Mag Coupling Drive Builtin Louver Glass
Get Mag Coupling Drive Builtin Louver Glass
Smart Energy-Efficient Windows and Doors
We manufacture premium energy-saving windows and doors featuring advanced thermal insulation, soundproofing, and smart control systems. Our patented technologies deliver superior performance with thermal ratings up to level 7, water resistance to 700 Pa, and noise reduction to 35 dB.
