X-Space Window

by The School of Industrial Design in LAFA

Client: LuXun Academy of Fine Arts

Bronze A' Design Award Winner in Social Category

21,181

Verified Award Winner

Verify Award Status for #54372

View at A' Design Award Press Release Award Badge

Colors

The Design

About X-Space Window

X-Space is a fire escape window designed for residential rooms where the passageway may be blocked during a fire. The design is a redesign of the window frame with a rotational structure holder made of five parts that interact by mechanical principles. Turning the handle 180 degrees anticlockwise triggers the alarm and notifies firefighters. Opening the window then forms a space outside the wall. A fire resisting shutter hidden in the holder axis is pulled out to isolate fire and smoke while people wait for rescue.

The Recognition

About the Bronze A' Design Award

X-Space Window is a Bronze A' Design Award winner, a highly prestigious recognition granted to outstanding designs distinguished by creativity, ingenuity, and astuteness. Bronze winners are amply skillful and strikingly creative artifacts that authenticate the vast experience, imagination, and resourcefulness of their designers. X-Space Window is expected to be a highly regarded, admired, and cherished object that is notably professional and innovative. This Bronze A' Design Award-winning design incorporates best practices in art, science, design, and technology, and is excellent for its attention to detail. X-Space Window splendidly satisfies needs, touches desires, charms feelings, and appeals to curiosity.

Image Analysis

Color Temperature: WarmSymmetry: Both DirectionsBackground: Top and Bottom

Behind the Design

Press Kit

Credits, team members and technical details provided by the designer.

Unique Properties: X-Space is redesign of the window frame including rotational structure holder. When it is opening, the automatic alarm will send a notice to fireman and the rotated holder combine with the outer wall will constitute a safety space isolated the fire and smoke. When fire coming up, all family members can easily get out of the fire through the X-Space avoiding the injury from the fire and smoke behind the outer wall. On ordinary days, X-Space is just look like an unique window frame outside.
Dimensions & Packaging: Close type:Width 1270mm x Depth 604mm x Height 1850mm
Open type:Width 2260mm x Depth 1570mm x Height 1850mm
Tags: Escape, Rescued, Fire, Security, Protection
Production Technology: Our project is kind of model combination design, combine with 5 holder parts. All holder interacting by mechanical principal with each other.
Design Challenge: The challenge of our design is that we cannot find a suitable material in smoke control and thermal isolated. After a number of tests in the selection of materials, we finally find the proper material which achieves the desired effect.
Research: In some kinds of situations of the fire that passageway has been blocked in accident. No matter what you do, you cannot escape from the fire through the door. Once fire coming up, the dark smoke billows on it’s heels. According to the data, as long as you get away from the fire in 3 minutes, the chance you will alive are occupied the certain proportion. Thus, we try to find a appropriate way in product design which can make people get away from the fire immediately. Finally, we find our point in window frame redesign.
Inspiration: By considering those circumstance always appearance in fire accident like passageway has been blocked so that the person inside the room cannot escape the scene of a fire immediately. To offer a better solution for trapped person get away form the fire quickly, we find the point in window frame redesign. We offer you X-Space, a redesign of window frame, the quickly way to get away from the fire and smoke.
Project Duration: The project started in August 2016 in LAFA Communal Facility Design Studio and finished in February 2017 in National Experimental Teaching Demonstration Center of Industrial Design in LAFA.

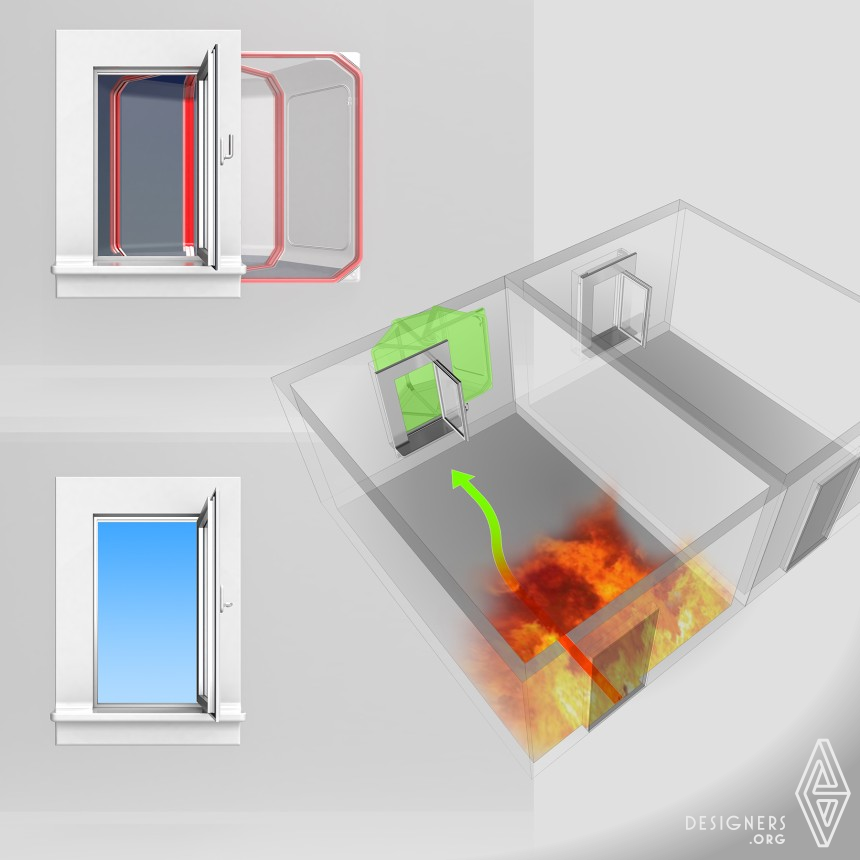

Operation Flow: In usual days, when you want to open your window, turn the handle into 90 degrees anti-clockwise. When fire coming up, turn the handle into 180 degrees anti-clockwise to trigger the fire alarm. As this time, if you open the window, all holder interacting by mechanical principal with each other are relevant with it. After all family members come into the X-Space waiting for rescued, you should pull out the fire resisting shutter which is hidden in the holder axis to cover the window position therefore it will constitute a safety space isolated the fire and smoke.
Team Members: Designer: Xue Wenkai
Designer:Sun Jian
Designer:Jiang Meihan
Designer:Zhou Xiaozhu
Designer:Du Heli
