Iron Building Materials and Construction Components Design · 2022
Elite Smart Film
- A' Design Award 2022 Iron Winner in Building Materials and Construction Components Design
- Awarded April 15, 2022
- CLIENT: Elite Smart Film Inc
- Estimated Number of Design Views: 13,956
- Verification code 92F546DA56 · Verify this award
About Elite Smart Film

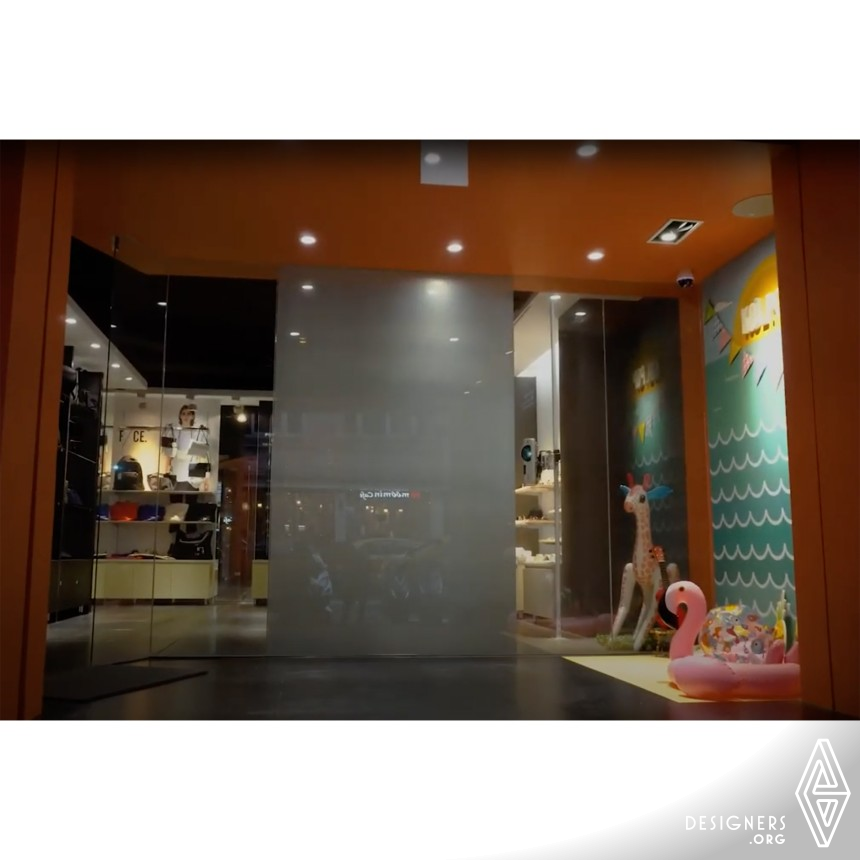

Elite Smart is a switchable film for windows and glass partitions. The film is made by injecting liquid crystal polymers and conductive polymers between two transparent conductive layers. Without power, the film appears foggy. Under alternating current, the liquid crystal molecules align and the film turns transparent. The change between transparent and opaque states is made with a simple power switch. A PEDOT conductive layer gives high transmittance and low resistance, blocks all ultraviolet rays and over 90 percent of infrared light.
Press Kit
- Unique Properties
- Elite Smart Film is made by injecting liquid crystal polymers and conductive polymers between two transparent conductive films. It appears foggy when not energized, but through alternating current effects, the liquid crystal molecules inside will arrange neatly and the film will change from a foggy state into being transparent. Quick conversion between transparency and opacity is achieved simply through a power switch.
- Dimensions & Packaging
- Width from 120cm to 150cm x Length from 50cm to 100cm
- Tags
- Curtain, Material, Window, Projection, Film
- Production Technology
- The main conductive material used by most smart films that adopt LCD panels on the market is ITO; but due to its low opacity, heat intolerance, low durability to sunlight exposure and special power specifications, not only does it take up space, it also malfunctions very easily. As a result, it could not be applied for exterior wall curtains and outdoor advertisements effectively.
- Design Challenge
- Since the material is strong, flexible and bendable, its applications have increased significantly across different fields; for example: it can be applied on windows facing direct sunlight exposure, outdoor advertisements and construction planning, etc.
- Project Duration
- Market launch in 2016
- Operation Flow

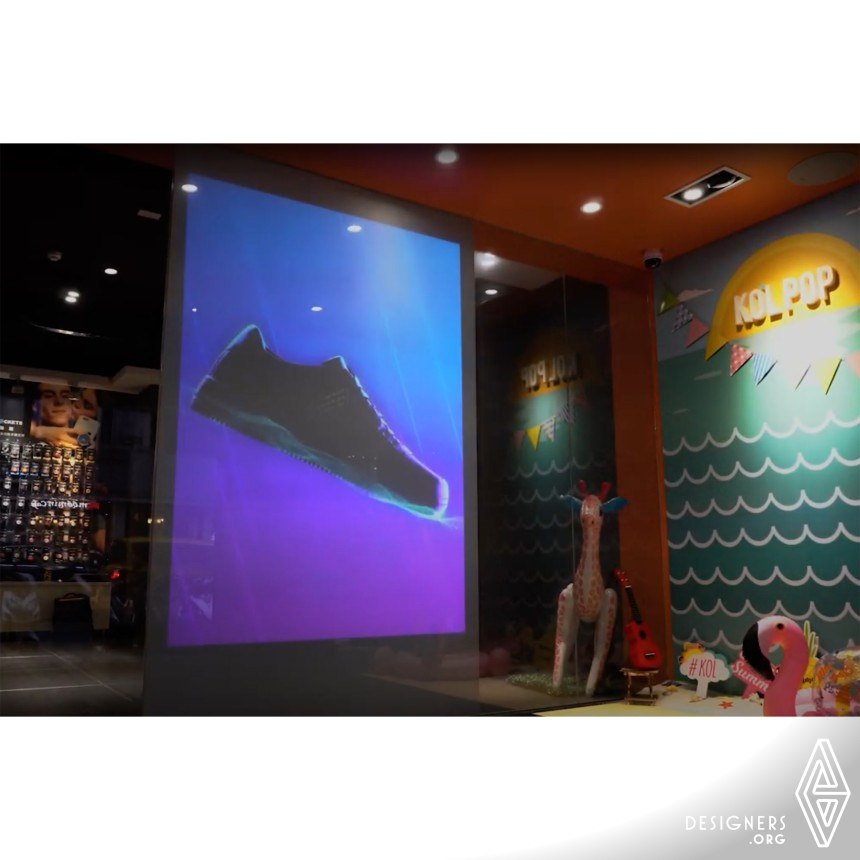

- Smart films can replace power-consuming LCD screens on the glass curtain walls in department stores and be used as large projection advertising walls; it can provide energy-saving and carbon-reduction benefits. For the clean rooms of industrial production lines or medical facilities, the quick transparency-switching feature of smart films can satisfy all external patrols, visits and internal displays.
- Research
- Under the efforts of our R&D team, the PEDOT conductive layer was successfully created. Its features and performances are better than ITO, and we already obtained the patent for the composition of the conductive layer. The PEDOT material used by Elite Smart Film ensures high transmittance and low resistance effects simultaneously; it can isolate 100% of the UV rays and over 90% of infrared.
- Inspiration
- Elite Smart Film can be applied in an extremely wide range of different environments. First off, it allows users to freely adjust the transparency of windows in general living spaces using its stepless dimming features whether it is the bedroom, dining room or living room; its ability to block 100% of the UV rays is particularly important when it comes to the health of the residents or the maintenance of leather furniture.
- Image Credits
- Image #1-5: Photographer Yao-Yuan Yeh, Elite Smart Film, 2016.
