Ludwig Katrin Neck Fixer by New Design Biotechnology Co.,Ltd is a highly esteemed winner of the very prestigious 2023 Bronze A' Design Award in Medical Devices and Medical Equipment Design Competition Category.
BronzeMedical Product· 2023
Ludwig Katrin Neck Fixer
by New Design Biotechnology Co.,Ltd
Client: GuangZhou New-Design Biotechnology Co.,Ltd
Bronze A' Design Award Winner in Medical Product Category
Verified Award Winner
Verify Award Status for #145974The Design
About Ludwig Katrin Neck Fixer

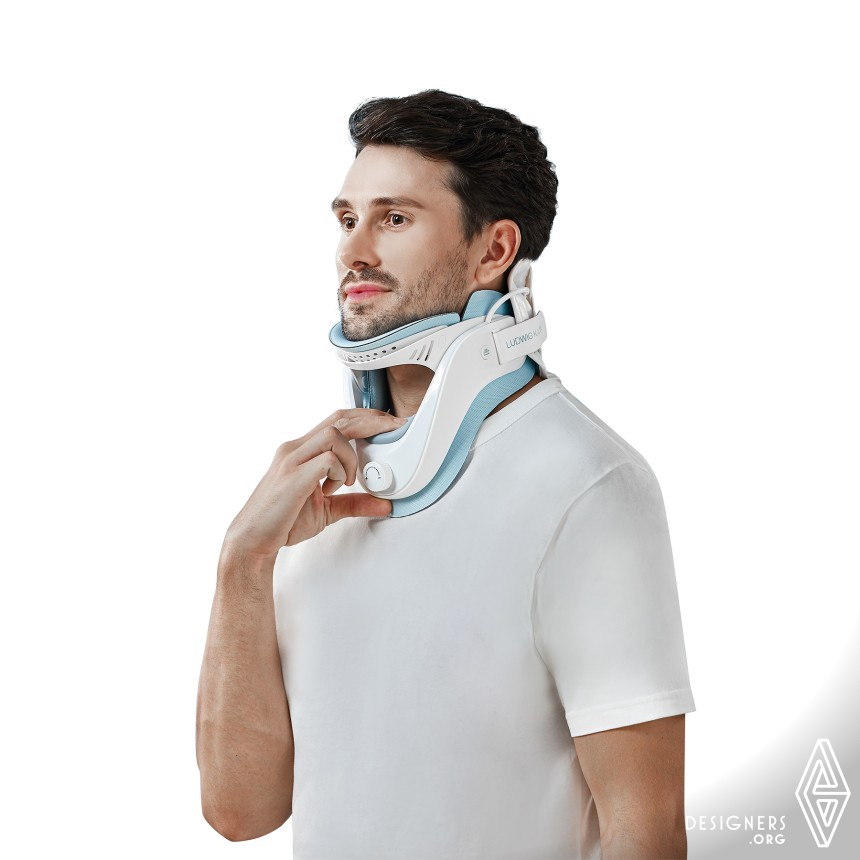

Ludwig Katrin is a neck fixer designed to hold and support the cervical spine. Unlike common neck fixing products with long external inflation tubes, Ludwig Katrin uses a built-in gasbag and an interior hidden line structure. The gasbag in the center is pressed to inflate the device, and an exhaust button on the left releases the air, which makes the product wireless and portable. Six gears allow step-by-step height adjustment, and a sound signal marks each gear. A supporting plate behind the neck guides the up-and-down movement, and the fabric cover is removable and washable.
The Recognition
About the Bronze A' Design Award
Ludwig Katrin Neck Fixer is a Bronze A' Design Award winner, a highly prestigious recognition granted to outstanding designs distinguished by creativity, ingenuity, and astuteness. Bronze winners are amply skillful and strikingly creative artifacts that authenticate the vast experience, imagination, and resourcefulness of their designers. Ludwig Katrin Neck Fixer is expected to be a highly regarded, admired, and cherished object that is notably professional and innovative. This Bronze A' Design Award-winning design incorporates best practices in art, science, design, and technology, and is excellent for its attention to detail. Ludwig Katrin Neck Fixer splendidly satisfies needs, touches desires, charms feelings, and appeals to curiosity.
Behind the Design
Press Kit
Credits, team members and technical details provided by the designer.
- Unique Properties
- Breakthrough inbuilt air-inflation,press the gasbag in the center to inflate, and press the exhaust button on the left of the product to exhaust air.
To get the best fixing and supporting effect, there are six gears for adjusting the product height and there will be a sound reminder when raising/lowering down each gear of heigh, the supporting plate behind the neck is designed to support the up-and-down adjustment. - Dimensions & Packaging
- 260mm x 220mm x1 80mm, with ergonomic tridynamic traction to restore healthy cervical curvature. Fix the cervical spine to allow adequate rest of the damaged cervical spine. Reverse C thrust evenly pushes away to repair cervical atrophy area. Upward support and downward lifting, while inflating, all balloons simultaneously apply force to distract the cervical spine space.
- Tags
- Neck, Holder, Traction, Wireless, Built-in inflation
- Production Technology
- Fix the cervical spine in place and change the bad position to maintain normal posture. Support the neck muscles to rest, relieve muscle spasms, and relieve local pain. Restrict the excessive movement of the neck to maintain local stability, relieve and improve the pressure state of the cone space, correct the internal and external balance of the cervical spine, which is helpful to recover as soon as possible.
- Design Challenge
- In order to create a brand-new wear experience, the whole machine fabric removable washable design is adopted. Through numerous ergonomic wear tests, proofing tests and modifications, the first embedded tracheal neck fixator has been developed, and the innovative experience of all-in-one inflation and deflation has been created. The therapeutic product can be adjusted step by step. The product has the voice feedback of gear adjustment. A more therapeutic neck fixator makes the patient feel lighter and more comfortable to use.
- Research
- In the treatment of patients with cervical spondylosis, plaster, stent, neck bracket and so on are often used to make the cervical spine get a stable state and achieve the purpose of treatment. This is neck fixation and braking, and cervical vertebra fixator is commonly used.
The cervical spine fixator on the market has long inflation lines that affects patient use, while this design is a highly discernible structural functional form and differentiated product, with internal wiring, integration, centralized functional area, and upgrades operation experience. - Inspiration
- The existing neck fixing products have a set of long inflation tube components which seriously affect the use comfortability of the product.
We hope that the patient can remember his suitable raising height when using the product to get a better healing outcome. - Project Duration
- The project lasted for 1 year and was completed in Guangzhou.
- Operation Flow
- Adapts an in-built gasbag and an interior line-hidden structure. Press the gasbag in the center to inflate, and press the exhaust button on the left of the product to exhaust air, hence realizing a convenient wireless portable product experience.
There are six gears for adjusting the product height and there will be a sound reminder when raising/lowering down each gear of height. To get the best fixing and supporting effect, the supporting plate behind the neck is designed to support the up-and-down adjustment, so users can select a suitable height to wear. - Team Members
- Shaowei Zhang
Sile Zou
Hongtai Lin
Weijie Shen
Weijian Xie
Jialiang Li
Shengyan Liang
Jinxing Li - Image Credits
- GuangZhou New-Design Biotechnology Co.,Ltd
