Rhinitis Aid Light Therapy Apparatus
by New Design Biotechnology Co., Ltd
- A' Design Award 2023 Iron Winner in Beauty, Personal Care and Cosmetic Products Design
- Awarded April 15, 2023
- CLIENT: GuangZhou New-Design Biotechnology Co.,Ltd
- Estimated Number of Design Views: 34,162
- Verification code 10D035C3B7 · Verify this award
About Rhinitis Aid Light Therapy Apparatus

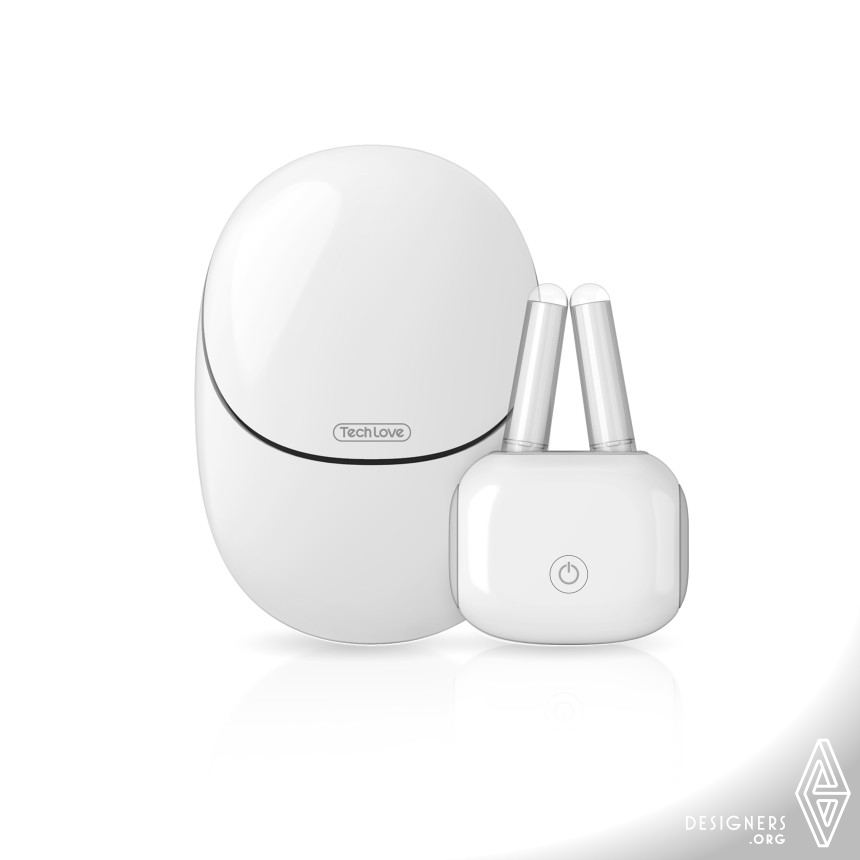

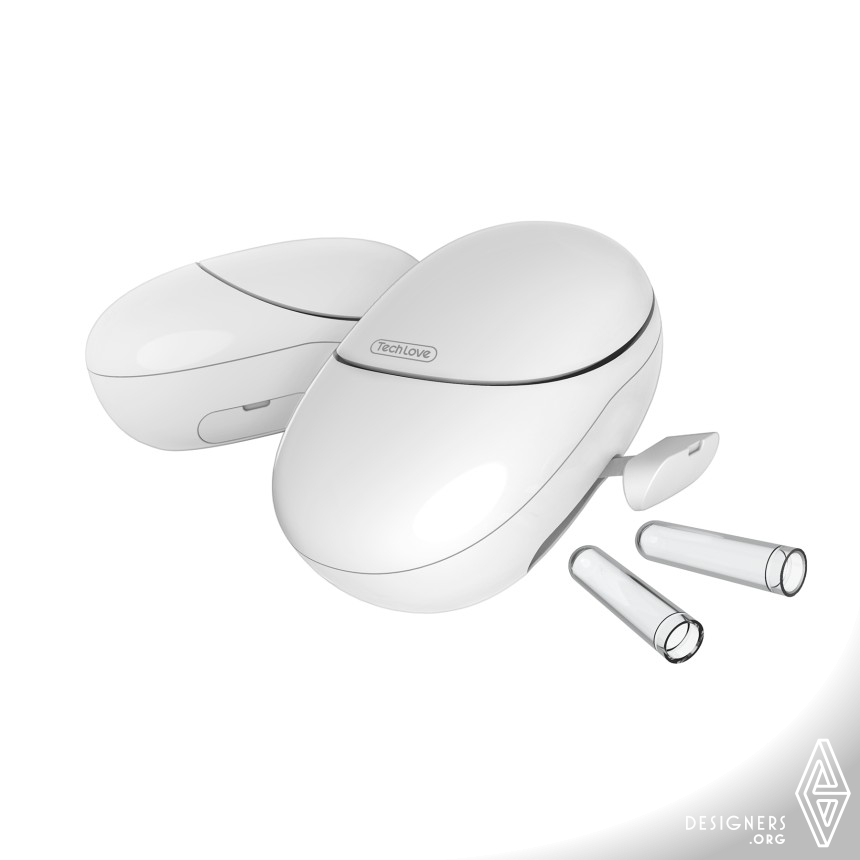

Rhinitis Aid is a portable red light therapy device for people with allergic rhinitis. The wireless main unit clips onto the nose and weighs 14 grams, so no connecting wires are needed. Two narrow band light emitting diodes with a central wavelength of 630 nanometers direct red light into the nasal cavity. A treatment session lasts five minutes and then stops automatically. The charging case uses ultraviolet light to disinfect the device between uses. The compact body allows the device to be carried and used at any time.
Press Kit
- Unique Properties
- A portable, comfortable and sterile product for patients with rhinitis.Wearing comfort: pinch-nose structure, removing connecting wires, the mainframe only weighs 14g.Aseptic therapy: The charging chamber has ultraviolet sterilization function Small enough to carry around.Portable: Small enough to carry around and use at any time.Class II medical device certification, clinically tested and valid, charging chamber disinfection efficiency up to 99.99%.
- Dimensions & Packaging
- 82mm x 58mm x 38mm, the product is small and easy to carry. The rhinitis phototherapy instrument is designed for reducing the symptoms of allergic rhinitis such as nasal congestion, running nose and sneezing. It is suitable for use by anyone without any side effects.
- Tags
- Rhinitis Remission, Rhinitis Therapy Apparatus, Red Phototherapy, Aseptic Therapy, Portable
- Production Technology
- The rhinitis phototherapy instrument is focused on the nasal cavity for phototherapy through the red light generated by two narrow-band light emitting diodes with a central wavelength of 630 nm. Red light stimulates the activity of antioxidant (SOD and cataiase), inhibits active oxides that induce sensitive symptoms, stabilizes mast cells, thereby reducing the release of histamines and the production of protein antibodies.
- Design Challenge
- Pinch-nose structure, removing connecting wires.Small enough to carry around and use at any time.
- Project Duration
- The project will be completed in April 2022 in Guangzhou for half a year.
- Operation Flow
- Press the power key and the auxiliary therapy beam emits. Press the protrusions on both sides to adjust the opening distance of the nasal plug tube. Ensure that two microwave light sources enter the nasal cavity for 1-1.5 cm. The micro-light will automatically turn off 5 minutes after the treatment starts, and the LED light of the treatment head flashes when the battery is low. When the host power is low, the charging contact of the host can be lowered into the charging box for charging.
- Research
- Low-intensity phototherapy has been used in medical therapy for decades, and phototherapy is achieved through bioregulation. Low intensity cold light source will not cause surface tissue damage and no residues to organism when applied as energy. The light source of the rhinitis phototherapy instrument emits special red light that protects the nasal mucosa against allergy factors.
- Inspiration
- The existing red rhinitis instrument is connected to the host through a long wire and the product is large in size, which greatly affects the comfort of daily use and wear. The nose is one of the most susceptible parts of bacterial infection. It provide patients with the ability to kill virus and sterile function to eliminate secondary infection problems.
