Subkayak D46 Racing and Leisure Touring Kayak

The visual separation of the kayak into two flowing sections began as a stylistic idea, but it quickly turned into something more meaningful. I wanted the kayak to stand out instantly, not just as a high-performing product, but as something sculptural and desirable. The challenge was to find a way to express this character without disrupting the functional integrity of the hull, which had already been optimised for speed and efficiency by the Subkayak team.That’s where the split concept came in. Everything above the waterline was designed to be bold, angular, and expressive. But as the form transitions toward the hull, it becomes completely flat and smooth, just as it needs to be for hydrodynamic performance. This contrast between sculptural top and sleek bottom not only creates a striking visual identity, but also draws a clear boundary between expression and function.For touring paddlers, it gives the feeling of paddling something unique, something with presence. For racers, it subtly reinforces a sense of control and focus: the kayak looks fast, and that has a psychological effect. The visual split, enhanced by the painted line, becomes more than just decoration, it becomes a design feature that enhances the emotional experience of both performance and leisure.

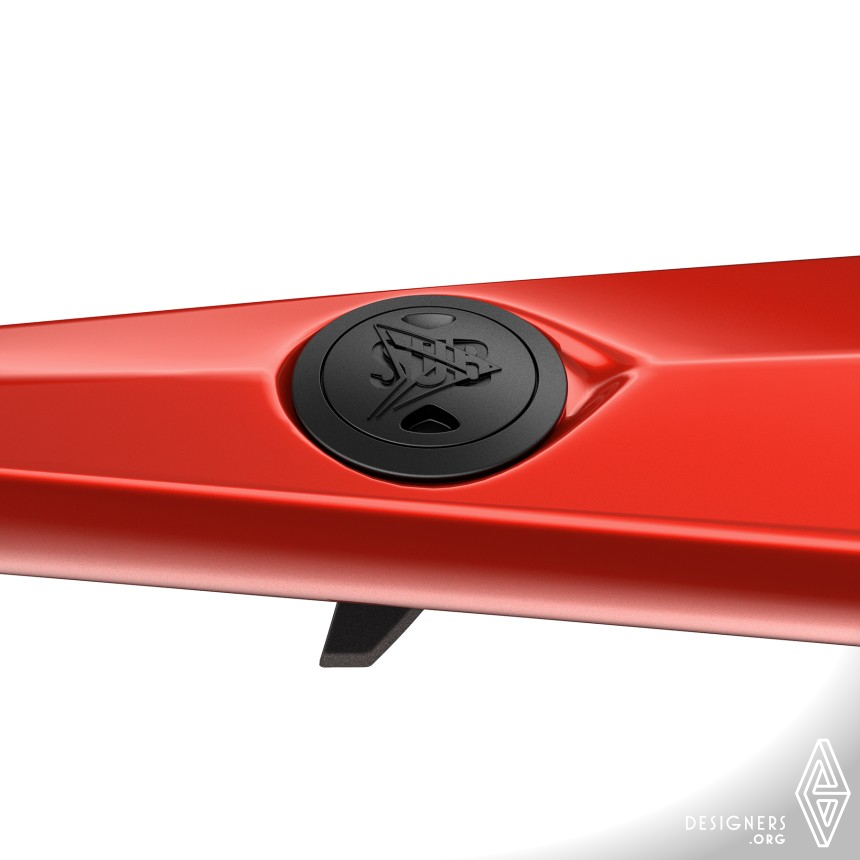

The key was identifying components that weren’t structurally critical, areas that wouldn’t be exposed to high mechanical stress or wear. That gave us the freedom to explore customization without compromising the performance or safety of the kayak. The parts we chose for 3D printing such as logos, decorative inlays, and select cockpit features were ideal candidates for this approach.With today’s additive manufacturing technologies, these components aren’t a compromise; they’re a design advantage. They allow us to create complex geometries, personalized logos, or even one-off elements in ways that would be impossible or very expensive with traditional methods.What started as a visual upgrade quickly became something more meaningful. Paddlers are passionate about their gear, and offering them the ability to express their identity through small but visible elements adds an emotional layer to the product. It’s a performance kayak, yes, but it’s also theirs. And that sense of ownership matters.

Digitizing the a hand-built and developed kayak hull with millimeter accuracy was one of the most demanding parts of the project. Although we had access to a high-quality 3D scanner, capturing such a long, thin, and organically curved object came with challenges, especially around narrow or reflective areas where scan noise often appeared. The raw data needed a lot of cleanup and several rounds of surface reconstruction before it was usable for further surface modeling and CAD.Because the kayak had to stay strictly within regulated dimensions for length, width, and height, every surface had to be rebuilt with precision. Even a few extra millimeters in the wrong place could make the design ineligible for competition.Once the hull was accurately reconstructed, the upper section, everything above the waterline, was modelled from scratch. This is where the design freedom started. I combined my concept sketches with strict ergonomic and structural requirements to sculpt a new top body that visually redefined the kayak, while perfectly blending into the certified hull below. Finding this optimal transition was a very time consuming and meticulous ask.What made this process especially complex is that a kayak like this has no flat surfaces anywhere, every part is curved and continuous. Since the final model for production would be CNC-machined directly from the CAD, the surface quality had to be flawless. Any minor inconsistency would be visible in the reflections or even affect performance. So I treated the entire design like a Class-A surfacing job, balancing performance-critical accuracy with expressive form. It was like sculpting within two boundaries, freedom above the waterline, discipline below it.
